» MEASUREMENT AND TEST INSTRUMENTATION » ELECTRIC, MAGNETIC AND ELECTROMAGNETIC FIELD METERS » 8053-B

GET YOUR QUOTE

Main Category:

MEASUREMENT AND TEST INSTRUMENTATION

Secondary Category:

ELECTRIC, MAGNETIC AND ELECTROMAGNETIC FIELD METERS

Specification

Campo Elettrico: Sì

Campo Magnetico: Sì

Campo Elettromagnetico: Sì

Status:

AVAILABLE

Brand:

NARDA PMM

Model Name:

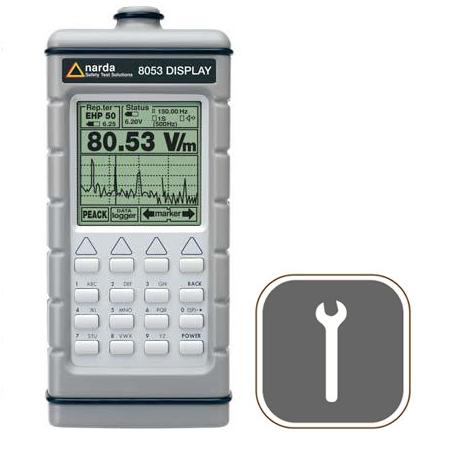

8053-B

Item Code:

NARDA PMM 8053-B DB

Applications:

Measures Work Environments EMF
Environmental measures EMF LF
Environmental measures EMF RF

Description:

Meter electric and magnetic fields and low frequency electromagnetic fields in RF and MW. Frequency range 5 Hz to 40 GHz (50 GHz). Complete with certificate of calibration, software to dowload data, battery charger and connection cable to the PC RS232

General Features:

Automatic self-test during power-featured, automatic verification of each sensor diode
LCD display with X, Y, Z in absolute value, percentage and total
Internal real time clock
Isotropic triaxial sensors for measurements
Internal memory and various functions
Built-in rechargeable batteries for long range power
Fiber optic connection for interference-free measures
Display results with spectral analysis on a large graphic display (up to 100 kHz)
PC interface for remote control and download data
Applications to electric fields, magnetic and elettromanetici for occupationally exposed workers, and the population according to the ICNIRP standard DPCM 1998 and of 08 July 2003

Specifications:

Calibration data of internal sensors to ensure high accuracy of measurement
Filters low frequency signals for reliable measurements with unstable
Over 140 dB dynamic
Arithmetic mean, and quadratic space (30sec, etc. 1,2,3,6,10,12,30 min.) And a stand-alone data processing
Analog display (linear and logarithmic) for an immediate perception of the field
Alphanumeric keyboard to record the measurement date and comment
Output Fiber Optic
Alarm light and sound
Internadivisibile memory block (32,700 samples)
Acquisition software on Windows Vista
Auto power off the car battery for energy saving
Dimensions: 108 x 240 x 50 mm
Weight 7.1 Kg
Operating temperature: -10 ° C +40 ° C
Storage temperature: -20 ° C + 70 ° C
