ELECTRIC, MAGNETIC AND ELECTROMAGNETIC FIELD MEASUREMENT SENSORS
HIGH FREQUENCY
Campo Elettrico: No
Campo Magnetico: No
Campo Elettromagnetico: Sì
AVAILABLE
NARDA PMM
EHP-200
NARDA PMM EHP-200 DB
Measures Work Environments EMF
Environmental measures EMF RF
Sensor Analyzer triaxial isotropic electric and magnetic fields in the range 9 kHz - 30 MHz
Electric field range: 0.1 to 1000 V / m (0.02 - 200 V / m with preamplifier on)
Range magnetic field mode A: (9 kHz - 3 MHz) 30 mA / m - 300 A / m (6 mA / m - 60 A / m with preamplifier on)
Range mode magnetic field B: (300 kHz - 30 MHz) 3 mA / m - 30 A / m (0.6 mA / m - 6 A / m with preamplifier on)
Direct connection to PC via optical fiber (optical drive / USB cable supplied) with software Narda Probe Model
Battery life> 8 hours
Charging time: <8 hours
Fiber optic technology to eliminate any effects of disruption of electrical or magnetic component of electromagnetic field
Suitable measures for LW, MW, SW calculating impedance value (CW) and Metal Detectors
Dimensions: 96 x 96 x 115 mm
Weight: 550 g
Aux input: 9 kHz - 30 MHz Measurement range -80 to 0 dBm (-94 to +14 dBm with preamplifier on)
Resolution: 0.01 V / m, 1 mA / m (mode), 0.1 mA / m (modeB) 0.01 dB (Aux)
Sensitivity at 10 kHz RBW: The electric field 0.1 V / m (0.02 V / m with preamplifier on), Magnetic field mode at 30 mA / m (6 mA / m with preamplifier on), magnetic field B mode 3 mA / m (0.6 mA / m with preamplifier on), AUX -80 dBm (-94 dBm with preamplifier on)
Flatness: 0.5 dB power range (100 kHz-27 MHz @ 20V / m) magnetic field mode A: 0.8 dB (150 kHz-3 MHz @ 166 mA / m) magnetic field B mode: 0.8 dB (300 kHz-27 MHz @ 53 mA / m) AUX: 0.4 dB @ -20 dBm
Anisotropic @ 1 MHz: Electric field + / - 0.8 dB; magnetic field modes A and B + / - 0.8 dB
Linearity @ 1 MHz: 0.5 dB from FS - 60 dBFS
SPAN: 0 to full span
IF filters: 1-3-10-30-100-300 kHz
E-field rejection:> 20 dB
H-field rejection> 20 dB
Span E 2 PROM internal
Preamp: selectable on / off, 14 dB
Unit of measurement: V / m A / m, uT, mW / cm 2, W / m 2
Alimenatzione external: 10-15 Vdc, I = approx. 500 mA
Fiber optic connection: approx 80 m (max)
Operating temperature: -10 to 50 ° C
Storage temperature: -20 to +70 ° C
Error in temperature: 0.02 dB / ° C
Tripod: Threaded Insert 1 / 4
Internal batteries: 3.7 V-3, 6 Ah Li-Ion rechargeable
RADIO FREQUENCY ELECTROMAGNETIC FIELDS: environmental monitoring techniques
UNCERTAINTIES IN MEASURING EQUIPMENT
MORE INFORMATION

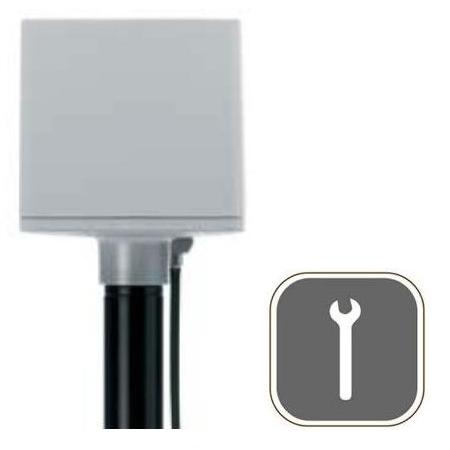

Repair on sensor analyzer triaxial isotropic electric and magnetic fields in the range 9 kHz - 30 MHz
