Main Category:

MEASUREMENT AND TEST INSTRUMENTATION

Secondary Category:

TEST RF

Status:

AVAILABLE

Brand:

MPB

Model Name:

SEMS-LIGHT

Item Code:

MPB SEMS-LIGHT DB

Applications:

EMI EMC measures
Health Physics
Measures Work Environments EMF

Description:

System for measuring the effectiveness of screening in local environments and screened RM from 10 kHz to 128 MHz (300 MHz option)

General Features:

Electric and magnetic fields from 10 kHz to 128 MHz (300 MHz option)

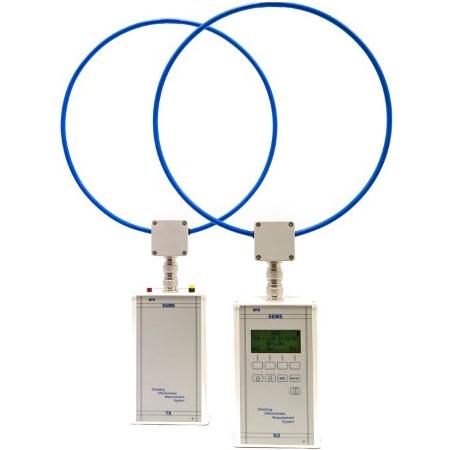

The kit consists of:
SEMS Receiver RX
SEMS Transmitter TX
Optic link (Length 10 m)
12 user-definable frequencies across the range 10 kHz - 128 MHz
Measurement mode in automatic, manual, prequiet, unconnected mode
SEMS PC Utility software, carrying bag, operation manual in English, 2 charger and RS232 PC interface cable
Certificate of Standard Calibration
Compliance with International Standards: MIL-Std-285, IEEE Std 299, EN 50147-1; NSA 65-6

Specifications:

10 Hz resolution
RF Output (Form TX): Zout 50 Ohm, N fem; Maximum power consumption (typical) +30 dBm
RF input (RX Module): 50 Ohm Zin, Nfem; VSWR <1.2; Attenuators 0 ... 20 dB max input level 110 dBuV
IF Bandwidth (Module RX): 3 dB bandwidth 5/150 Hz
Minimum attenuation accuracy (typical): 10 kHz ... 30 MHz + / - 1 dB 30 MHz .. 300MHz + / - 1.5 dB
I / O interface RS232
Alarm system on the level of attenuation
Set-Up Calibration and Measurement: Pre-programmable by PC via SEMS-Utility software
Operating temperature 0 ° C - 40 ° C
Battery-powered non-replaceable rechargeable Li-Ion (6 hours)
Dimensions TX and RX 106X46X194 mm
Weight 708 g Transmitter TX
Receiver RX Weight 774 g
