Specification

Campo Elettrico: No

Campo Magnetico: No

Campo Elettromagnetico: S

Status:

AVAILABLE

Brand:

NARDA PMM

Model Name:

EP-408

Item Code:

NARDA PMM EP-408 DB

Applications:

Measures Work Environments EMF
Environmental measures EMF RF

Description:

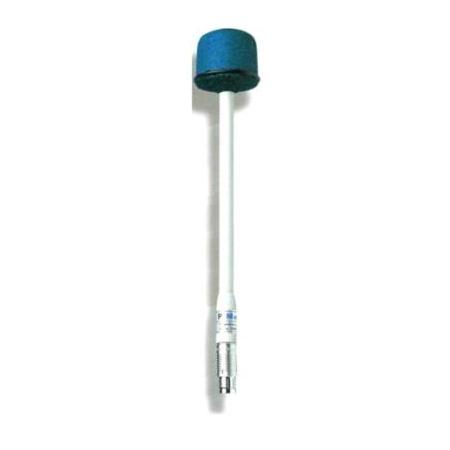

Probe for the measurement of the electrical component of the electromagnetic field in the range 1 MHz - 40 GHz

General Features:

Frequency Range 1 MHz - 40 GHz
Capacity: 0.8 - 800 V / m
Overload> 1000 V / m
Dynamics> 60 dB
Resolution: 0.01 V / m
Sensitivity: 0.8 V / m
Telecommunications, microwave equipment, safety in workplaces and public

Specifications:

Absolute error @ 200 MHz and 6 V / m: + / - 0.8 dB
Flatness (1 MHz - 1 GHz): + / - 1.5 dB
Flatness (1 - 3 GHz): + / - 2 dB
Flatness (3 - 18 GHz): + / - 2.5 dB
Flatness (18 - 26.5 GHz): + / - 3 dB
Flatness (26.5 - 40 GHz): + / - 4 dB
Isotropicity @ 200 MHz: + / - 0.8 dB (Typical + / - 0.5 dB @ 930 and 1800 MHz)
H-field rejection:> 20 dB
Error in temperature: 0.02 dB / C
E 2 PROM internal calibration
Dimensions: length 317 mm, 52 mm diameter
Weight: 90 g
